SKU: 1-WD-W46D42-2000-3U
Availability: In Stock
  • Waterfall edge provides extra strength and a secure fit.
  • Drops easily into place. No tools required.
$11.50
$11.50
Size: 46'' W x 42'' D
Load Capacity: 2000-2400lbs
Apply to be a reseller
APPLY NOW
U Channel Wire Decking

U Channel Wire Decking

$11.50
U Channel Wire Decking
U Channel Wire Decking
U Channel Wire Decking
U Channel Wire Decking
U Channel Wire Decking

U Channel Wire Decking

$45.04
Size: 46'' W x 42'' D
Load Capacity: 2000-2400lbs
    Overview
    Specification
    Overview

    THICKNESS:

    Wire: 6 Gauge = 4.9mm

    Support Channels: 14-16 gauge (14GA=2.0mm, 16GA=1.6mm)

    Support Channels Q'ty: 3-4 / PC

    MATERIAL:

    Steel

    COMPATIBILITY:

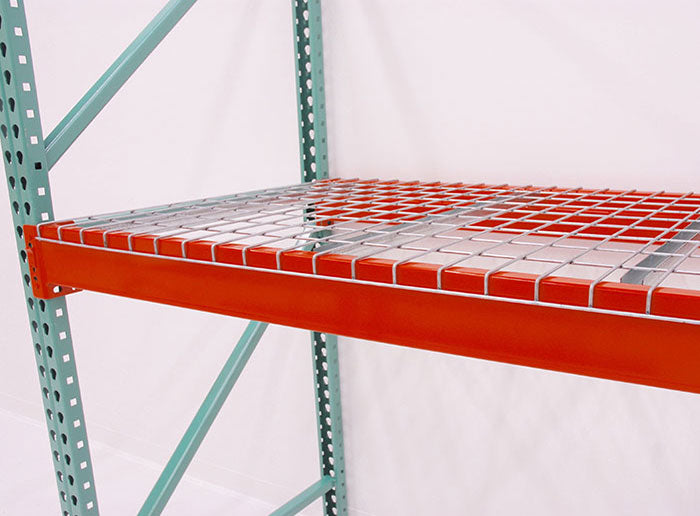

    Compatible with 1 5/8" pallet rack step beams.

    CAPACITY:

    Capacity listed in the chart is for each deck based on evenly distributed loads.

    Qty Per Pallet:100 PCS

    Using the deck does not add additional capacity beyond the total beam capacity.

    Specification


    Item #Item DescriptionQ'ty Per PalletChannel Support QtyChannel GaugeLoading Capacity
    （LBS)    		Product Dimension
    (Width x Depth)    		For Pallet RacksProduct Weight
    Per Piece    		40HQ Qty
    (PCS)
    inmmWidth
    (in)    		Depth
    (in)    		Step BeamKGSLBS
    1-WD-W46D24-2500-3U46''W X 24''D 3 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100314 GA = 2.0mm2500-3000 46 x 241168 x 61048,96,144241 5/8"5.28 11.65 2,688
    1-WD-W46D24-2000-3U46''W X 24''D 3 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100316 GA = 1.6mm2000-240046 x 241168 x 61048,96,144241 5/8"4.73 10.42 2,688
    1-WD-W46D36-2500-3U46''W X 36''D 3 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100314 GA = 2.0mm2500-3000 46 x 361168 x 91448,96,144361 5/8"8.13 17.92 2,112
    1-WD-W46D36-2000-3U46''W X 36''D 3 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100316 GA = 1.6mm2000-240046 x 361168 x 91448,96,144361 5/8"6.66 14.68 2,112
    1-WD-W46D42-2500-3U46''W X 42''D 3 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100314 GA = 2.0mm2500-3000 46 x 421168 x 106748,96,144421 5/8"8.10 17.86 2,000
    1-WD-W46D42-2000-3U46''W X 42''D 3 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100316 GA = 1.6mm2000-240046 x 421168 x 106748,96,144421 5/8"7.56 16.67 2,000
    1-WD-W46D44-2500-3U46''W X 44''D 3 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100314 GA = 2.0mm2500-3000 46 x 441168 x 111848,96,144441 5/8"10.43 22.99 1,224
    1-WD-W46D44-2000-3U46''W X 44''D 3 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100316 GA = 1.6mm2000-240046 x 441168 x 111848,96,144441 5/8"8.55 18.85 1,224
    1-WD-W46D48-2500-3U46''W X 48''D 3 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100314 GA = 2.0mm2500-3000 46 x 481168 x 121948,96,144481 5/8"10.74 23.69 1,224
    1-WD-W46D48-2000-3U46''W X 48''D 3 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100316 GA = 1.6mm2000-240046 x 481168 x 121948,96,144481 5/8"8.80 19.40 1,224
    1-WD-W52D24-2500-4U52''W X 24''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 52 x 241321 x 610108241 5/8"5.90 13.01 2,688
    1-WD-W52D24-2000-4U52''W X 24''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240052 x 241321 x 610108241 5/8"4.82 10.63 2,688
    1-WD-W52D36-2500-4U52''W X 36''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 52 x 361321 x 914108361 5/8"10.12 22.32 2,000
    1-WD-W52D36-2000-4U52''W X 36''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240052 x 361321 x 914108361 5/8"8.31 18.31 2,000
    1-WD-W52D42-2500-4U52''W X 42''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 52 x 421321 x 1067108421 5/8"11.58 25.54 1,600
    1-WD-W52D42-2000-4U52''W X 42''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240052 x 421321 x 1067108421 5/8"9.50 20.95 1,600
    1-WD-W52D48-2500-4U52''W X 48''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 52 x 481321 x 1219108481 5/8"13.13 28.94 1,200
    1-WD-W52D48-2000-4U52''W X 48''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240052 x 481321 x 1219108481 5/8"10.76 23.73 1,200
    1-WD-W58D24-2500-4U58''W X 24''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 58 x 241473 x 610120241 5/8"6.30 13.89 2,688
    1-WD-W58D24-2000-4U58''W X 24''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240058 x 241473 x 610120241 5/8"5.15 11.34 2,688
    1-WD-W58D36-2500-4U58''W X 36''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 58 x 361473 x 914120361 5/8"10.69 23.57 1,500
    1-WD-W58D36-2000-4U58''W X 36''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240058 x 361473 x 914120361 5/8"8.77 19.33 1,500
    1-WD-W58D42-2500-4U58''W X 42''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 58 x 421473 x 1067120421 5/8"12.25 27.02 1,500
    1-WD-W58D42-2000-4U58''W X 42''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240058 x 421473 x 1067120421 5/8"10.04 22.13 1,500
    1-WD-W58D48-2500-4U58''W X 48''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 58 x 481473 x 1219120481 5/8"13.86 30.56 1,200
    1-WD-W58D48-2000-4U58''W X 48''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240058 x 481473 x 1219120481 5/8"11.36 25.05 1,200
    1-WD-W58D52-2500-4U58''W X 52''D 4 U Channel Wire Decking 2500LBS @100PCS Per Pallet 100414 GA = 2.0mm2500-3000 58 x 521473 x 1321120521 5/8"14.74 32.51 1,200
    1-WD-W58D52-2000-4U58''W X 52''D 4 U Channel Wire Decking 2000LBS @100PCS Per Pallet 100416 GA = 1.6mm2000-240058 x 521473 x 1321120521 5/8"12.08 26.63 1,200
