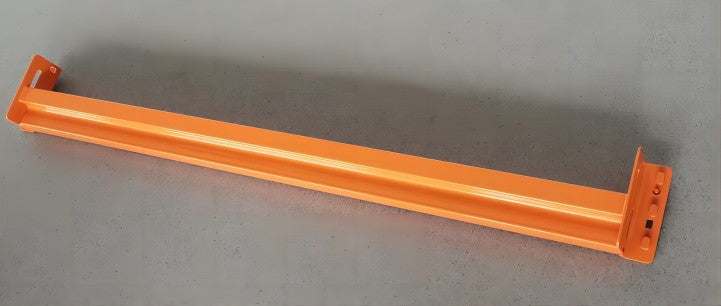

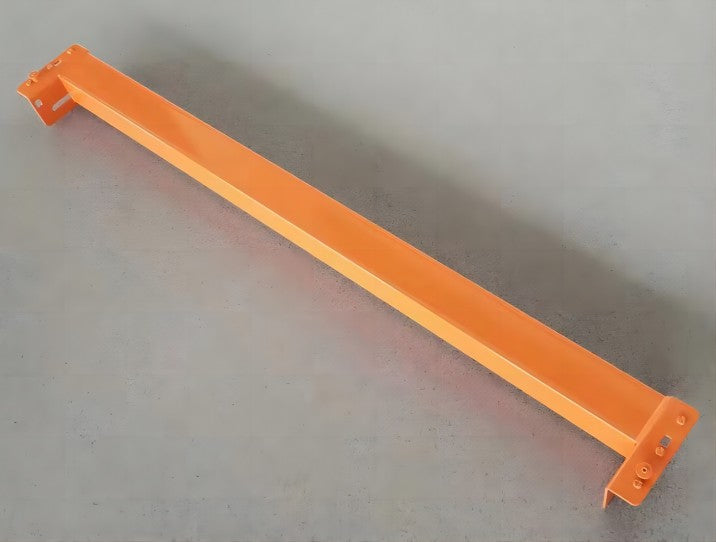

Pallet Rack Step Beam With 3 Pins
Pallet Rack Step Beam With 3 Pins
Pallet Rack Step Beam With 3 Pins
Pallet Rack Step Beam With 3 Pins

Pallet Rack Step Beam With 3 Pins

SKU: 1-SB48L3H-3P-14G
Availability: In Stock

Easily add extra levels to your pallet racks.

  • Step beams feature a 1 5/8" step for decking or pallet support bar positioning.
$25.27
$25.27
Length: 48''
Height: 3''
Material Thickness: 14 Gauge
Apply to be a reseller
APPLY NOW
Pallet Rack Step Beam With 3 Pins

Pallet Rack Step Beam With 3 Pins

$25.27
Pallet Rack Step Beam With 3 Pins
Pallet Rack Step Beam With 3 Pins
Pallet Rack Step Beam With 3 Pins
Pallet Rack Step Beam With 3 Pins

Pallet Rack Step Beam With 3 Pins

$78.03
Length: 48''
Height: 3''
Material Thickness: 14 Gauge
    Overview
    Specification
    Overview

    DIMENSIONS:

    Beam Depth: 2 1/2"

    Step: 1 5/8"

    Material Thickness:14Gauge or 16Gauge

    FEATURES:

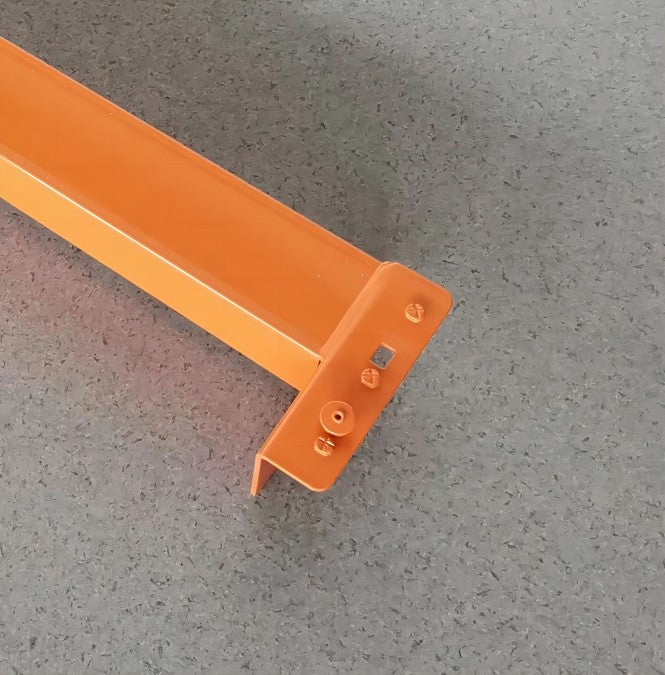

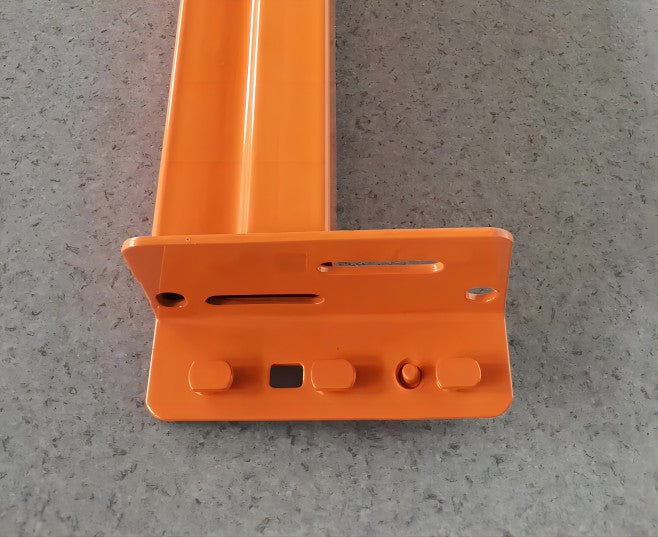

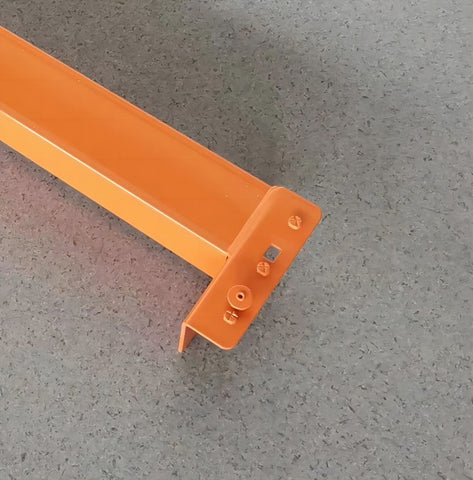

    3-Rivet connection

    Automatically set & lock into the uprights.

    CAPACITY:

    Beam capacity listed in the chart is based on evenly distributed loads.

    USAGE:

    Racks are for seismic applications.

    Specification
    Item #Item # DescriptionBeam GaugeCapacity
    (Per Pair)
    LBS    		ColorMaterialDimension
    L x H
    		Theoretical Unit Weight Per Piece
    mminLBSKGS
    1-SB48L3H-3P-16GStep Beam With 3 Pins 48" L X 3" H,16 GA16 GA5,830 OrangeSteel1219 x 7648 x 311.445.19
    1-SB96L3H-3P-16GStep Beam With 3 Pins 96" L X 3" H,16 GA16 GA2,550 OrangeSteel2438 x 7696 x 319.88.98
    1-SB108L3H-3P-16GStep beam with 3 pins 108" L X 3" H,16 GA16 GA2,070 OrangeSteel2743 x 76108 x 3229.98
    1-SB120L3H-3P-16GStep Beam With 3 Pins 120" L X 3" H,16 GA16 GA1,720 OrangeSteel3048 x 76120 x 324.210.98
    1-SB144L3H-3P-16GStep Beam With 3 Pins 144" L X 3" H,16 GA16 GA1,260 OrangeSteel3658 x 76144 x 328.612.97
    1-SB48L3.5H-3P-16GStep Beam With 3 Pins 48" L X 3 1/2'' H,16 GA16 GA7,160 OrangeSteel1219 x 8948 x 3.512.245.55
    1-SB96L3.5H-3P-16GStep Beam With 3 Pins 96" L X 3 1/2'' H,16 GA16 GA3,450 OrangeSteel2438 x 8996 x 3.521.389.70
    1-SB108L3.5H-3P-16GStep beam with 3 pins 108" L X 3 1/2'' H,16 GA16 GA2,780 OrangeSteel2743 x 89108 x 3.523.7810.79
    1-SB120L3.5H-3P-16GStep Beam With 3 Pins 120" L X  3 1/2" H,16 GA16 GA2,300 OrangeSteel3048 x 89120 x 3.526.1811.87
    1-SB144L3.5H-3P-16GStep Beam With 3 Pins 144" L X 3 1/2'' H,16 GA16 GA1,670 OrangeSteel3658 x 89144 x 3.530.9714.05
    1-SB48L4H-3P-16GStep Beam With 3 Pins 48" L X 4'' H,16 GA16 GA8,650 OrangeSteel1219 x 10248 x 413.035.91
    1-SB96L4H-3P-16GStep Beam With 3 Pins 96" L X 4'' H,16 GA16 GA4,570 OrangeSteel2438 x 10296 x 422.9710.42
    1-SB108L4H-3P-16GStep beam with 3 pins 108" L X 4'' H,16 GA16 GA3,670 OrangeSteel2743 x 102108 x 425.5511.59
    1-SB120L4H-3P-16GStep Beam With 3 Pins 120" L X 4" H,16 GA16 GA3,030 OrangeSteel3048 x 102120 x 428.1512.77
    1-SB144L4H-3P-16GStep Beam With 3 Pins 144" L X 4'' H,16 GA16 GA2,170 OrangeSteel3658 x 102144 x 433.3615.13
    1-SB48L4.5-3P-16GStep Beam With 3 Pins 48" L X 4 1/2'' H,16 GA16 GA10,300 OrangeSteel1219 x 11448 x 4.513.896.30
    1-SB96L4.5-3P-16GStep Beam With 3 Pins 96" L X 4 1/2'' H,16 GA16 GA5,400 OrangeSteel2438 x 11496 x 4.524.6711.19
    1-SB108L4.5-3P-16GStep beam with 3 pins 108" L X 4 1/2'' H,16 GA16 GA4,750 OrangeSteel2743 x 114108 x 4.527.4912.47
    1-SB120L4.5-3P-16GStep Beam With 3 Pins 120" L X 4 1/2'' H,16 GA16 GA3,900 OrangeSteel3048 x 114120 x 4.530.2913.74
    1-SB144L4.5-3P-16GStep Beam With 3 Pins 144" L X 4 1/2'' H,16 GA16 GA2,780 OrangeSteel3658 x 114144 x 4.535.9116.29
    1-SB48L5H-3P-16GStep Beam With 3 Pins 48" L X 5'' H,16 GA16 GA12,080 OrangeSteel1219 x 12748 x 514.646.64
    1-SB96L5H-3P-16GStep Beam With 3 Pins 96" L X 5'' H,16 GA16 GA6,270 OrangeSteel2438 x 12796 x 526.1911.88
    1-SB108L5H-3P-16GStep beam with 3 pins 108" L X 5'' H,16 GA16 GA5,630 OrangeSteel2743 x 127108 x 529.1913.24
    1-SB120L5H-3P-16GStep Beam With 3 Pins 120" L X 5'' H,16 GA16 GA4,950 OrangeSteel3048 x 127120 x 532.1914.60
    1-SB144L5H-3P-16GStep Beam With 3 Pins 144" L X 5'' H,16 GA16 GA3,510 OrangeSteel3658 x 127144 x 538.1817.32
    1-SB48L5.5H-3P-16GStep Beam With 3 Pins 48" L X 5 1/2'' H,16 GA16 GA14,010 OrangeSteel1219 x 14048 x 5.515.457.01
    1-SB96L5.5H-3P-16GStep Beam With 3 Pins 96" L X 5 1/2'' H,16 GA16 GA7,220 OrangeSteel2438 x 14096 x 5.527.8412.63
    1-SB108L5.5H-3P-16GStep beam with 3 pins 108" L X 5 1/2'' H,16 GA16 GA6,460 OrangeSteel2743 x 140108 x 5.531.0414.08
    1-SB120L5.5H-3P-16GStep Beam With 3 Pins 120" L X 5 1/2'' H,16 GA16 GA5,720 OrangeSteel3048 x 140120 x 5.534.2615.54
    1-SB144L5.5H-3P-16GStep Beam With 3 Pins 144" L X 5 1/2'' H,16 GA16 GA4,270 OrangeSteel3658 x 140144 x 5.540.6518.44
    1-SB48L6H-3P-16GStep Beam With 3 Pins 48" L X 6'' H,16 GA16 GA16,070 OrangeSteel1219 x 15248 x 616.257.37
    1-SB96L6H-3P-16GStep Beam With 3 Pins 96" L X 6'' H,16 GA16 GA8,240 OrangeSteel2438 x 15296 x 629.4313.35
    1-SB108L6H-3P-16GStep beam with 3 pins 108" L X 6'' H,16 GA16 GA7,360 OrangeSteel2743 x 152108 x 632.8314.89
    1-SB120L6H-3P-16GStep Beam With 3 Pins 120" L X 6'' H,16 GA16 GA6,510 OrangeSteel3048 x 152120 x 636.2216.43
    1-SB144L6H-3P-16GStep Beam With 3 Pins 144" L X 6'' H,16 GA16 GA4,840 OrangeSteel3658 x 152144 x 643.0319.52
    1-SB48L3H-3P-14GStep Beam With 3 Pins 48" L X 3" H,14 GA14 GA7,140 OrangeSteel1219 x 7648 x 313.946.32
    1-SB96L3H-3P-14GStep Beam With 3 Pins 96" L X 3" H,14 GA14 GA3,000 OrangeSteel2438 x 7696 x 325.6711.64
    1-SB108L3H-3P-14GStep beam with 3 pins 108" L X 3" H,14 GA14 GA2,430 OrangeSteel2743 x 76108 x 328.612.97
    1-SB120L3H-3P-14GStep Beam With 3 Pins 120" L X 3" H,14 GA14 GA2,010 OrangeSteel3048 x 76120 x 331.5314.30
    1-SB144L3H-3P-14GStep Beam With 3 Pins 144" L X 3" H,14 GA14 GA1,460 OrangeSteel3658 x 76144 x 337.416.96
    1-SB48L3.5H-3P-14GStep Beam With 3 Pins 48" L X 3 1/2'' H,14 GA14 GA8,830 OrangeSteel1219 x 8948 x 3.514.996.80
    1-SB96L3.5H-3P-14GStep Beam With 3 Pins 96" L X 3 1/2'' H,14 GA14 GA4,100 OrangeSteel2438 x 8996 x 3.527.7812.60
    1-SB108L3.5H-3P-14GStep beam with 3 pins 108" L X 3 1/2'' H,14 GA14 GA3,310 OrangeSteel2743 x 89108 x 3.530.9714.05
    1-SB120L3.5H-3P-14GStep Beam With 3 Pins 120" L X  3 1/2" H,14 GA14 GA2,730 OrangeSteel3048 x 89120 x 3.534.1715.50
    1-SB144L3.5H-3P-14GStep Beam With 3 Pins 144" L X 3 1/2'' H,14 GA14 GA1,960 OrangeSteel3658 x 89144 x 3.540.5618.40
    1-SB48L4H-3P-14GStep Beam With 3 Pins 48" L X 4'' H,14 GA14 GA10,730 OrangeSteel1219 x 10248 x 416.057.28
    1-SB96L4H-3P-14GStep Beam With 3 Pins 96" L X 4'' H,14 GA14 GA5,490 OrangeSteel2438 x 10296 x 429.8913.56
    1-SB108L4H-3P-14GStep beam with 3 pins 108" L X 4'' H,14 GA14 GA4,400 OrangeSteel2743 x 102108 x 433.3515.13
    1-SB120L4H-3P-14GStep Beam With 3 Pins 120" L X 4" H,14 GA14 GA3,610 OrangeSteel3048 x 102120 x 436.8116.70
    1-SB144L4H-3P-14GStep Beam With 3 Pins 144" L X 4'' H,14 GA14 GA2,580 OrangeSteel3658 x 102144 x 443.7319.84
    1-SB48L4.5-3P-14GStep Beam With 3 Pins 48" L X 4 1/2'' H,14 GA14 GA12,840 OrangeSteel1219 x 11448 x 4.517.197.80
    1-SB96L4.5-3P-14GStep Beam With 3 Pins 96" L X 4 1/2'' H,14 GA14 GA6,680 OrangeSteel2438 x 11496 x 4.532.1714.59
    1-SB108L4.5-3P-14GStep beam with 3 pins 108" L X 4 1/2'' H,14 GA14 GA5,740 OrangeSteel2743 x 114108 x 4.535.9116.29
    1-SB120L4.5-3P-14GStep Beam With 3 Pins 120" L X 4 1/2'' H,14 GA14 GA4,700 OrangeSteel3048 x 114120 x 4.539.6617.99
    1-SB144L4.5-3P-14GStep Beam With 3 Pins 144" L X 4 1/2'' H,14 GA14 GA3,330 OrangeSteel3658 x 114144 x 4.547.1521.39
    1-SB48L5H-3P-14GStep Beam With 3 Pins 48" L X 5'' H,14 GA14 GA15,110 OrangeSteel1219 x 12748 x 518.28.25
    1-SB96L5H-3P-14GStep Beam With 3 Pins 96" L X 5'' H,14 GA14 GA7,790 OrangeSteel2438 x 12796 x 534.1915.51
    1-SB108L5H-3P-14GStep beam with 3 pins 108" L X 5'' H,14 GA14 GA6,980 OrangeSteel2743 x 127108 x 538.1917.32
    1-SB120L5H-3P-14GStep Beam With 3 Pins 120" L X 5'' H,14 GA14 GA5,990 OrangeSteel3048 x 127120 x 542.1919.14
    1-SB144L5H-3P-14GStep Beam With 3 Pins 144" L X 5'' H,14 GA14 GA4,240 OrangeSteel3658 x 127144 x 550.1922.76
    1-SB48L5.5H-3P-14GStep Beam With 3 Pins 48" L X 5 1/2'' H,14 GA14 GA17,560 OrangeSteel1219 x 14048 x 5.519.38.75
    1-SB96L5.5H-3P-14GStep Beam With 3 Pins 96" L X 5 1/2'' H,14 GA14 GA9,000 OrangeSteel2438 x 14096 x 5.536.3916.50
    1-SB108L5.5H-3P-14GStep beam with 3 pins 108" L X 5 1/2'' H,14 GA14 GA8,050 OrangeSteel2743 x 140108 x 5.540.6618.44
    1-SB120L5.5H-3P-14GStep Beam With 3 Pins 120" L X 5 1/2'' H,14 GA14 GA7,130 OrangeSteel3048 x 140120 x 5.544.9320.38
    1-SB144L5.5H-3P-14GStep Beam With 3 Pins 144" L X 5 1/2'' H,14 GA14 GA5,300 OrangeSteel3658 x 140144 x 5.553.4824.26
    1-SB48L6H-3P-14GStep Beam With 3 Pins 48" L X 6'' H,14 GA14 GA20,180 OrangeSteel1219 x 15248 x 620.359.23
    1-SB96L6H-3P-14GStep Beam With 3 Pins 96" L X 6'' H,14 GA14 GA10,300 OrangeSteel2438 x 15296 x 638.517.46
    1-SB108L6H-3P-14GStep beam with 3 pins 108" L X 6'' H,14 GA14 GA9,190 OrangeSteel2743 x 152108 x 643.0319.52
    1-SB120L6H-3P-14GStep Beam With 3 Pins 120" L X 6'' H,14 GA14 GA8,130 OrangeSteel3048 x 152120 x 647.5721.58
    1-SB144L6H-3P-14GStep Beam With 3 Pins 144" L X 6'' H,14 GA14 GA6,080 OrangeSteel3658 x 152144 x 656.6425.69
