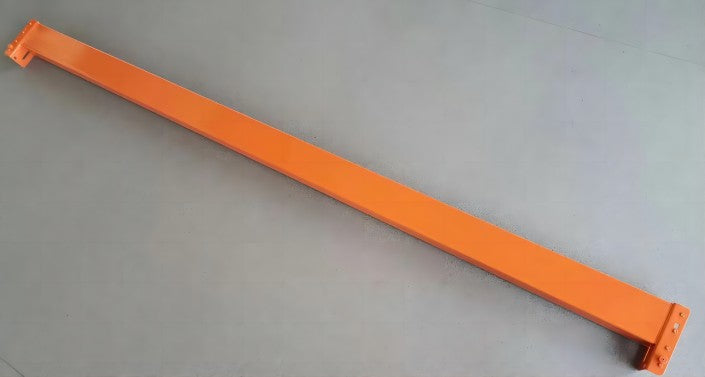

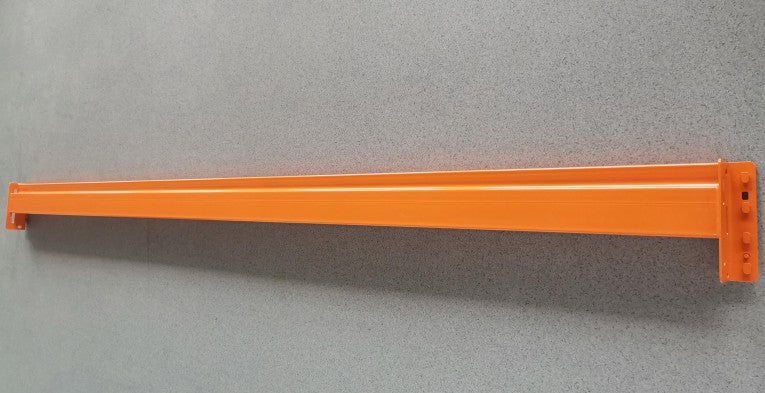

Pallet Rack Step Beam With 4 pins
Pallet Rack Step Beam With 4 pins
Pallet Rack Step Beam With 4 pins
Pallet Rack Step Beam With 4 pins

Pallet Rack Step Beam With 4 pins

SKU: 1-SB48L3H-4P-16G
Availability: In Stock

Easily add extra levels to your pallet racks.

  • Step beams feature a 1 5/8" step for decking or pallet support bar positioning.


$21.15
$21.15
Length: 48''
Height: 3''
Material Thickness: 16 Gauge
Apply to be a reseller
APPLY NOW
Pallet Rack Step Beam With 4 pins

Pallet Rack Step Beam With 4 pins

$21.15
Pallet Rack Step Beam With 4 pins
Pallet Rack Step Beam With 4 pins
Pallet Rack Step Beam With 4 pins
Pallet Rack Step Beam With 4 pins

Pallet Rack Step Beam With 4 pins

$103.90
Length: 48''
Height: 3''
Material Thickness: 16 Gauge
    Overview
    Specification
    Overview

    DIMENSIONS:

    Beam Depth: 2 1/2"

    Step: 1 5/8"

    Material Thickness:14Gauge or 16Gauge

    FEATURES:

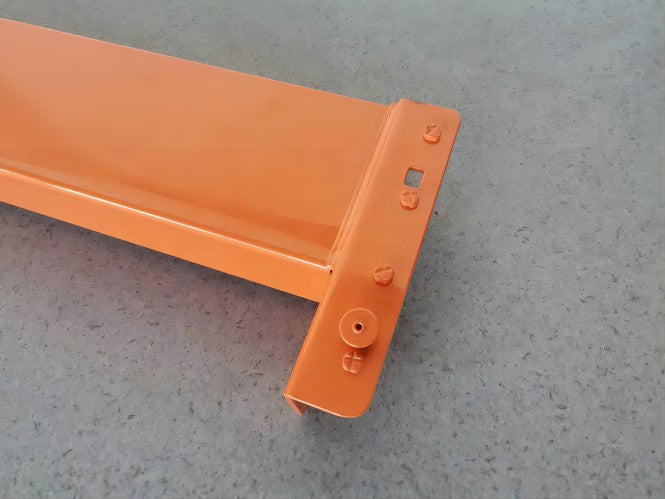

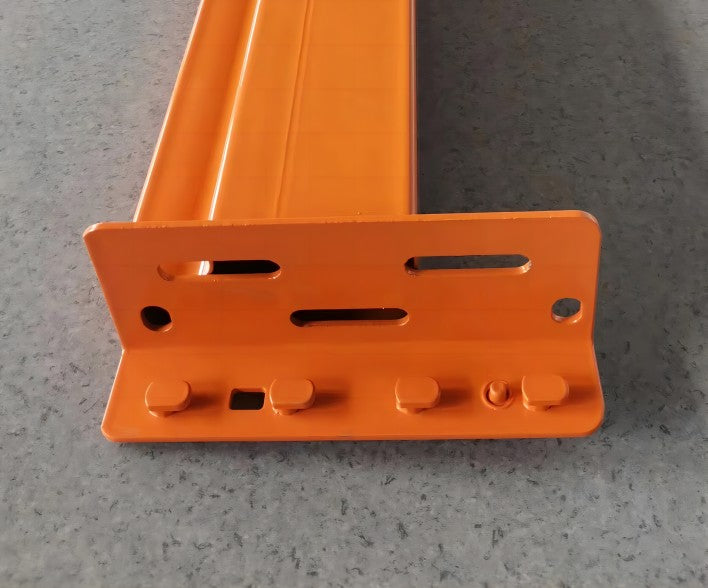

    4-Rivet connection

    Automatically set & lock into the uprights.

    CAPACITY:

    Beam capacity listed in the chart is based on evenly distributed loads.

    USAGE:

    Racks are for seismic applications.



    Specification
    Item #Item # DescriptionBeam GaugeCapacity
    (Per Pair)
    LBS    		ColorMaterialDimension
    L x H
    		Theoretical Unit Weight Per Piece
    mminLBSKGS
    1-SB48L3H-4P-16GStep Beam With 4 Pins 48" L X 3" H,16 GA16 GA6,080 OrangeSteel1219 x 7648 x 311.665.29
    1-SB96L3H-4P-16GStep Beam With 4 Pins 96" L X 3" H,16 GA16 GA2,770 OrangeSteel2438 x 7696 x 320.469.28
    1-SB108L3H-4P-16GStep beam with 4 pins 108" L X 3" H,16 GA16 GA2,260 OrangeSteel2743 x 76108 x 322.6610.28
    1-SB120L3H-4P-16GStep Beam With 4 Pins 120" L X 3" H,16 GA16 GA1,890 OrangeSteel3048 x 76120 x 324.8611.28
    1-SB144L3H-4P-16GStep Beam With 4 Pins 144" L X 3" H,16 GA16 GA1,390 OrangeSteel3658 x 76144 x 329.2613.27
    1-SB48L3.5H-4P-16GStep Beam With 4 Pins 48" L X 3 1/2'' H,16 GA16 GA7,390 OrangeSteel1219 x 8948 x 3.512.465.65
    1-SB96L3.5H-4P-16GStep Beam With 4 Pins 96" L X 3 1/2'' H,16 GA16 GA3,680 OrangeSteel2438 x 8996 x 3.522.0510.00
    1-SB108L3.5H-4P-16GStep beam with 4 pins 108" L X 3 1/2'' H,16 GA16 GA2,980 OrangeSteel2743 x 89108 x 3.524.4411.09
    1-SB120L3.5H-4P-16GStep Beam With 4 Pins 120" L X  3 1/2" H,16 GA16 GA2,480 OrangeSteel3048 x 89120 x 3.526.8412.17
    1-SB144L3.5H-4P-16GStep Beam With 4 Pins 144" L X 3 1/2'' H,16 GA16 GA1,810 OrangeSteel3658 x 89144 x 3.531.6414.35
    1-SB48L4H-4P-16GStep Beam With 4 Pins 48" L X 4'' H,16 GA16 GA8,860 OrangeSteel1219 x 10248 x 413.256.01
    1-SB96L4H-4P-16GStep Beam With 4 Pins 96" L X 4'' H,16 GA16 GA4,790 OrangeSteel2438 x 10296 x 423.6310.72
    1-SB108L4H-4P-16GStep beam with 4 pins 108" L X 4'' H,16 GA16 GA3,880 OrangeSteel2743 x 102108 x 426.2211.89
    1-SB120L4H-4P-16GStep Beam With 4 Pins 120" L X 4" H,16 GA16 GA3,210 OrangeSteel3048 x 102120 x 428.8213.07
    1-SB144L4H-4P-16GStep Beam With 4 Pins 144" L X 4'' H,16 GA16 GA2,320 OrangeSteel3658 x 102144 x 434.0115.43
    1-SB48L4.5-4P-16GStep Beam With 4 Pins 48" L X 4 1/2'' H,16 GA16 GA10,500 OrangeSteel1219 x 11448 x 4.514.16.40
    1-SB96L4.5-4P-16GStep Beam With 4 Pins 96" L X 4 1/2'' H,16 GA16 GA5,580 OrangeSteel2438 x 11496 x 4.525.3411.49
    1-SB108L4.5-4P-16GStep beam with 4 pins 108" L X 4 1/2'' H,16 GA16 GA4,970 OrangeSteel2743 x 114108 x 4.528.1512.77
    1-SB120L4.5-4P-16GStep Beam With 4 Pins 120" L X 4 1/2'' H,16 GA16 GA4,090 OrangeSteel3048 x 114120 x 4.530.9614.04
    1-SB144L4.5-4P-16GStep Beam With 4 Pins 144" L X 4 1/2'' H,16 GA16 GA2,940 OrangeSteel3658 x 114144 x 4.536.5716.59
    1-SB48L5H-4P-16GStep Beam With 4 Pins 48" L X 5'' H,16 GA16 GA12,260 OrangeSteel1219 x 12748 x 514.866.74
    1-SB96L5H-4P-16GStep Beam With 4 Pins 96" L X 5'' H,16 GA16 GA6,450 OrangeSteel2438 x 12796 x 526.8612.18
    1-SB108L5H-4P-16GStep beam with 4 pins 108" L X 5'' H,16 GA16 GA5,790 OrangeSteel2743 x 127108 x 529.8613.54
    1-SB120L5H-4P-16GStep Beam With 4 Pins 120" L X 5'' H,16 GA16 GA5,140 OrangeSteel3048 x 127120 x 532.8514.90
    1-SB144L5H-4P-16GStep Beam With 4 Pins 144" L X 5'' H,16 GA16 GA3,670 OrangeSteel3658 x 127144 x 538.8517.62
    1-SB48L5.5H-4P-16GStep Beam With 4 Pins 48" L X 5 1/2'' H,16 GA16 GA14,170 OrangeSteel1219 x 14048 x 5.515.687.11
    1-SB96L5.5H-4P-16GStep Beam With 4 Pins 96" L X 5 1/2'' H,16 GA16 GA7,380 OrangeSteel2438 x 14096 x 5.528.512.93
    1-SB108L5.5H-4P-16GStep beam with 4 pins 108" L X 5 1/2'' H,16 GA16 GA6,620 OrangeSteel2743 x 140108 x 5.531.7114.38
    1-SB120L5.5H-4P-16GStep Beam With 4 Pins 120" L X 5 1/2'' H,16 GA16 GA5,870 OrangeSteel3048 x 140120 x 5.534.9115.84
    1-SB144L5.5H-4P-16GStep Beam With 4 Pins 144" L X 5 1/2'' H,16 GA16 GA4,400 OrangeSteel3658 x 140144 x 5.541.3218.74
    1-SB48L6H-4P-16GStep Beam With 4 Pins 48" L X 6'' H,16 GA16 GA16,220 OrangeSteel1219 x 15248 x 616.487.47
    1-SB96L6H-4P-16GStep Beam With 4 Pins 96" L X 6'' H,16 GA16 GA8,390 OrangeSteel2438 x 15296 x 630.0813.65
    1-SB108L6H-4P-16GStep beam with 4 pins 108" L X 6'' H,16 GA16 GA7,510 OrangeSteel2743 x 152108 x 633.4915.19
    1-SB120L6H-4P-16GStep Beam With 4 Pins 120" L X 6'' H,16 GA16 GA6,650 OrangeSteel3048 x 152120 x 636.8916.73
    1-SB144L6H-4P-16GStep Beam With 4 Pins 144" L X 6'' H,16 GA16 GA4,960 OrangeSteel3658 x 152144 x 643.6919.82
    1-SB48L3H-4P-14GStep Beam With 4 Pins 48" L X 3" H,14 GA14 GA7,400 OrangeSteel1219 x 7648 x 314.66.62
    1-SB96L3H-4P-14GStep Beam With 4 Pins 96" L X 3" H,14 GA14 GA3,220 OrangeSteel2438 x 7696 x 326.3311.94
    1-SB108L3H-4P-14GStep beam with 4 pins 108" L X 3" H,14 GA14 GA2,620 OrangeSteel2743 x 76108 x 329.2613.27
    1-SB120L3H-4P-14GStep Beam With 4 Pins 120" L X 3" H,14 GA14 GA2,190 OrangeSteel3048 x 76120 x 332.1914.60
    1-SB144L3H-4P-14GStep Beam With 4 Pins 144" L X 3" H,14 GA14 GA1,600 OrangeSteel3658 x 76144 x 338.0617.26
    1-SB48L3.5H-4P-14GStep Beam With 4 Pins 48" L X 3 1/2'' H,14 GA14 GA9,080 OrangeSteel1219 x 8948 x 3.515.657.10
    1-SB96L3.5H-4P-14GStep Beam With 4 Pins 96" L X 3 1/2'' H,14 GA14 GA4,340 OrangeSteel2438 x 8996 x 3.528.4412.90
    1-SB108L3.5H-4P-14GStep beam with 4 pins 108" L X 3 1/2'' H,14 GA14 GA3,510 OrangeSteel2743 x 89108 x 3.531.6414.35
    1-SB120L3.5H-4P-14GStep Beam With 4 Pins 120" L X  3 1/2" H,14 GA14 GA2,910 OrangeSteel3048 x 89120 x 3.534.8315.80
    1-SB144L3.5H-4P-14GStep Beam With 4 Pins 144" L X 3 1/2'' H,14 GA14 GA2,110 OrangeSteel3658 x 89144 x 3.541.2318.70
    1-SB48L4H-4P-14GStep Beam With 4 Pins 48" L X 4'' H,14 GA14 GA10,960 OrangeSteel1219 x 10248 x 416.717.58
    1-SB96L4H-4P-14GStep Beam With 4 Pins 96" L X 4'' H,14 GA14 GA5,730 OrangeSteel2438 x 10296 x 430.5513.86
    1-SB108L4H-4P-14GStep beam with 4 pins 108" L X 4'' H,14 GA14 GA4,610 OrangeSteel2743 x 102108 x 434.0115.43
    1-SB120L4H-4P-14GStep Beam With 4 Pins 120" L X 4" H,14 GA14 GA3,810 OrangeSteel3048 x 102120 x 437.4717.00
    1-SB144L4H-4P-14GStep Beam With 4 Pins 144" L X 4'' H,14 GA14 GA2,740 OrangeSteel3658 x 102144 x 444.3920.14
    1-SB48L4.5-4P-14GStep Beam With 4 Pins 48" L X 4 1/2'' H,14 GA14 GA13,030 OrangeSteel1219 x 11448 x 4.517.858.10
    1-SB96L4.5-4P-14GStep Beam With 4 Pins 96" L X 4 1/2'' H,14 GA14 GA6,870 OrangeSteel2438 x 11496 x 4.532.8314.89
    1-SB108L4.5-4P-14GStep beam with 4 pins 108" L X 4 1/2'' H,14 GA14 GA5,960 OrangeSteel2743 x 114108 x 4.536.5716.59
    1-SB120L4.5-4P-14GStep Beam With 4 Pins 120" L X 4 1/2'' H,14 GA14 GA4,890 OrangeSteel3048 x 114120 x 4.540.3218.29
    1-SB144L4.5-4P-14GStep Beam With 4 Pins 144" L X 4 1/2'' H,14 GA14 GA3,500 OrangeSteel3658 x 114144 x 4.547.8121.69
    1-SB48L5H-4P-14GStep Beam With 4 Pins 48" L X 5'' H,14 GA14 GA15,300 OrangeSteel1219 x 12748 x 518.868.55
    1-SB96L5H-4P-14GStep Beam With 4 Pins 96" L X 5'' H,14 GA14 GA7,970 OrangeSteel2438 x 12796 x 534.8515.81
    1-SB108L5H-4P-14GStep beam with 4 pins 108" L X 5'' H,14 GA14 GA7,160 OrangeSteel2743 x 127108 x 538.8517.62
    1-SB120L5H-4P-14GStep Beam With 4 Pins 120" L X 5'' H,14 GA14 GA6,200 OrangeSteel3048 x 127120 x 542.8519.44
    1-SB144L5H-4P-14GStep Beam With 4 Pins 144" L X 5'' H,14 GA14 GA4,400 OrangeSteel3658 x 127144 x 550.8523.06
    1-SB48L5.5H-4P-14GStep Beam With 4 Pins 48" L X 5 1/2'' H,14 GA14 GA17,720 OrangeSteel1219 x 14048 x 5.519.969.05
    1-SB96L5.5H-4P-14GStep Beam With 4 Pins 96" L X 5 1/2'' H,14 GA14 GA9,160 OrangeSteel2438 x 14096 x 5.537.0516.80
    1-SB108L5.5H-4P-14GStep beam with 4 pins 108" L X 5 1/2'' H,14 GA14 GA8,210 OrangeSteel2743 x 140108 x 5.541.3218.74
    1-SB120L5.5H-4P-14GStep Beam With 4 Pins 120" L X 5 1/2'' H,14 GA14 GA7,280 OrangeSteel3048 x 140120 x 5.545.5920.68
    1-SB144L5.5H-4P-14GStep Beam With 4 Pins 144" L X 5 1/2'' H,14 GA14 GA5,460 OrangeSteel3658 x 140144 x 5.554.1424.56
    1-SB48L6H-4P-14GStep Beam With 4 Pins 48" L X 6'' H,14 GA14 GA20,340 OrangeSteel1219 x 15248 x 621.019.53
    1-SB96L6H-4P-14GStep Beam With 4 Pins 96" L X 6'' H,14 GA14 GA10,450 OrangeSteel2438 x 15296 x 639.1617.76
    1-SB108L6H-4P-14GStep beam with 4 pins 108" L X 6'' H,14 GA14 GA9,350 OrangeSteel2743 x 152108 x 643.6919.82
    1-SB120L6H-4P-14GStep Beam With 4 Pins 120" L X 6'' H,14 GA14 GA8,280 OrangeSteel3048 x 152120 x 648.2321.88
    1-SB144L6H-4P-14GStep Beam With 4 Pins 144" L X 6'' H,14 GA14 GA6,210 OrangeSteel3658 x 152144 x 657.325.99
