Bolted Teardrop Pallet Rack Upright Frame
Bolted Teardrop Pallet Rack Upright Frame
Bolted Teardrop Pallet Rack Upright Frame

Bolted Teardrop Pallet Rack Upright Frame

SKU: 1-UR96H36D-14G
Availability: In Stock

Extend your pallet racks with individual uprights.

Please email us "support@xyworldindustrial.com"for a super good price


$128.53
$128.53
Depth: 36''
Height: 96''
Apply to be a reseller
APPLY NOW
Bolted Teardrop Pallet Rack Upright Frame

Bolted Teardrop Pallet Rack Upright Frame

$128.53
Bolted Teardrop Pallet Rack Upright Frame
Bolted Teardrop Pallet Rack Upright Frame
Bolted Teardrop Pallet Rack Upright Frame

Bolted Teardrop Pallet Rack Upright Frame

$382.89
Depth: 36''
Height: 96''
    Overview
    Specification
    Overview

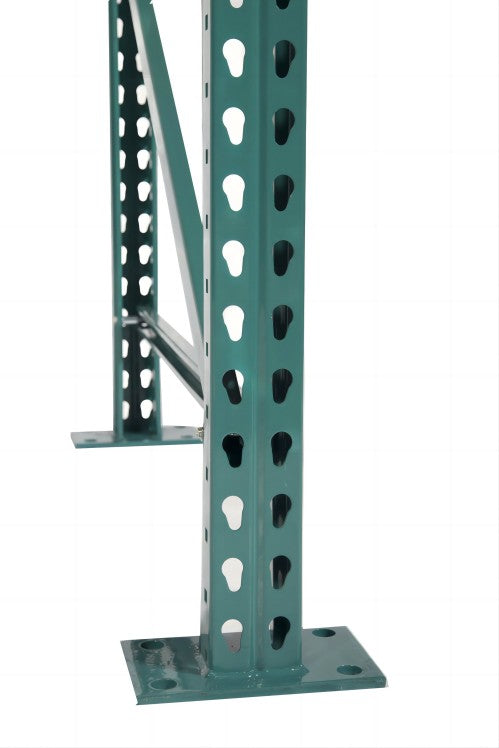

    Our Pallet Rack Uprights are constructed with 14-gauge steel and have a capacity of 17,600 lbs.

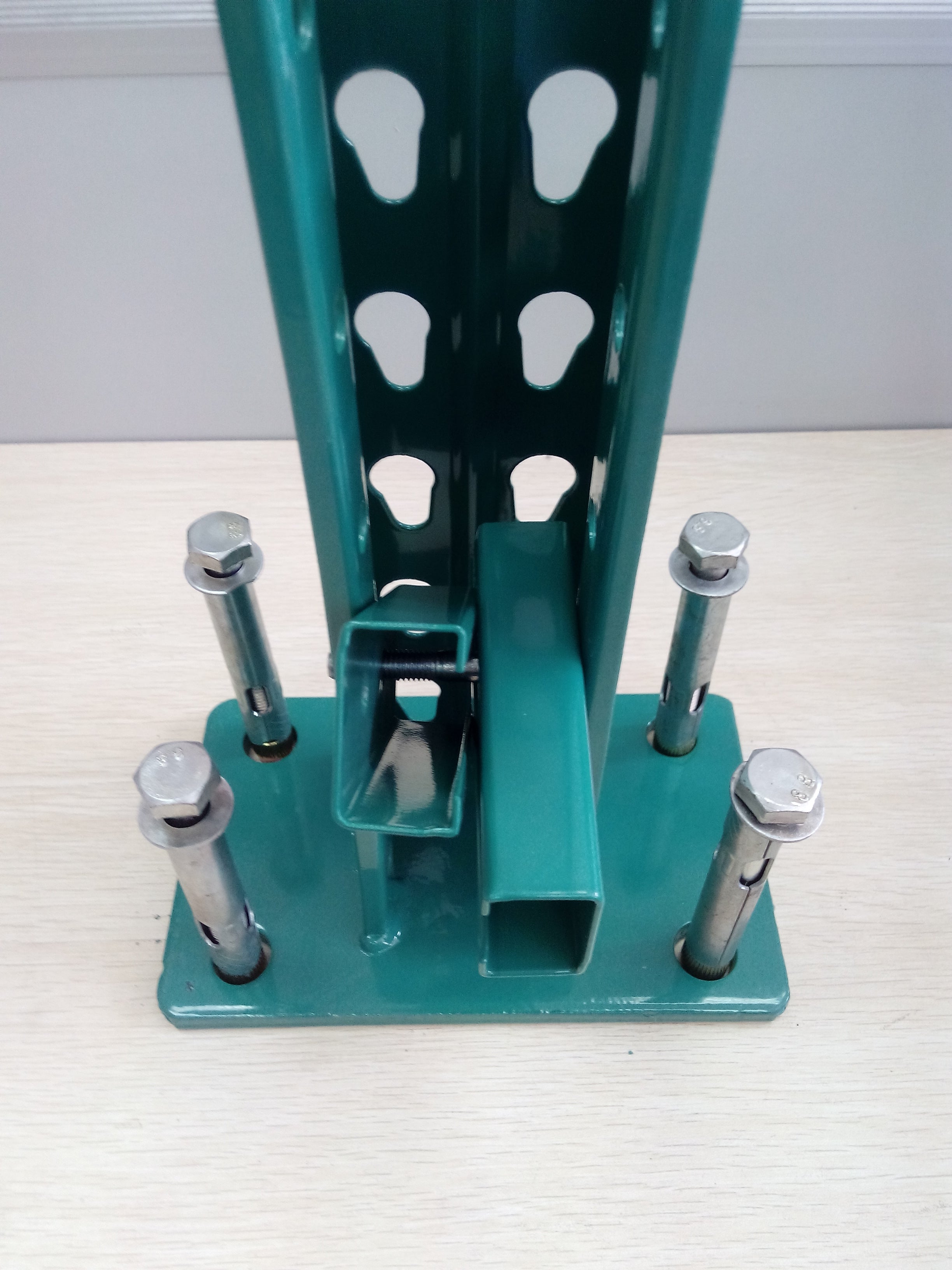

    They are constructed with 3″w x 3″d columns with four hole 8″ x 8″ x 3/8'' seismic footplates.

    Upright face is punched every 2”.

    Capacities are based on non-seismic installation and may be reduced depending on load beam configuration.

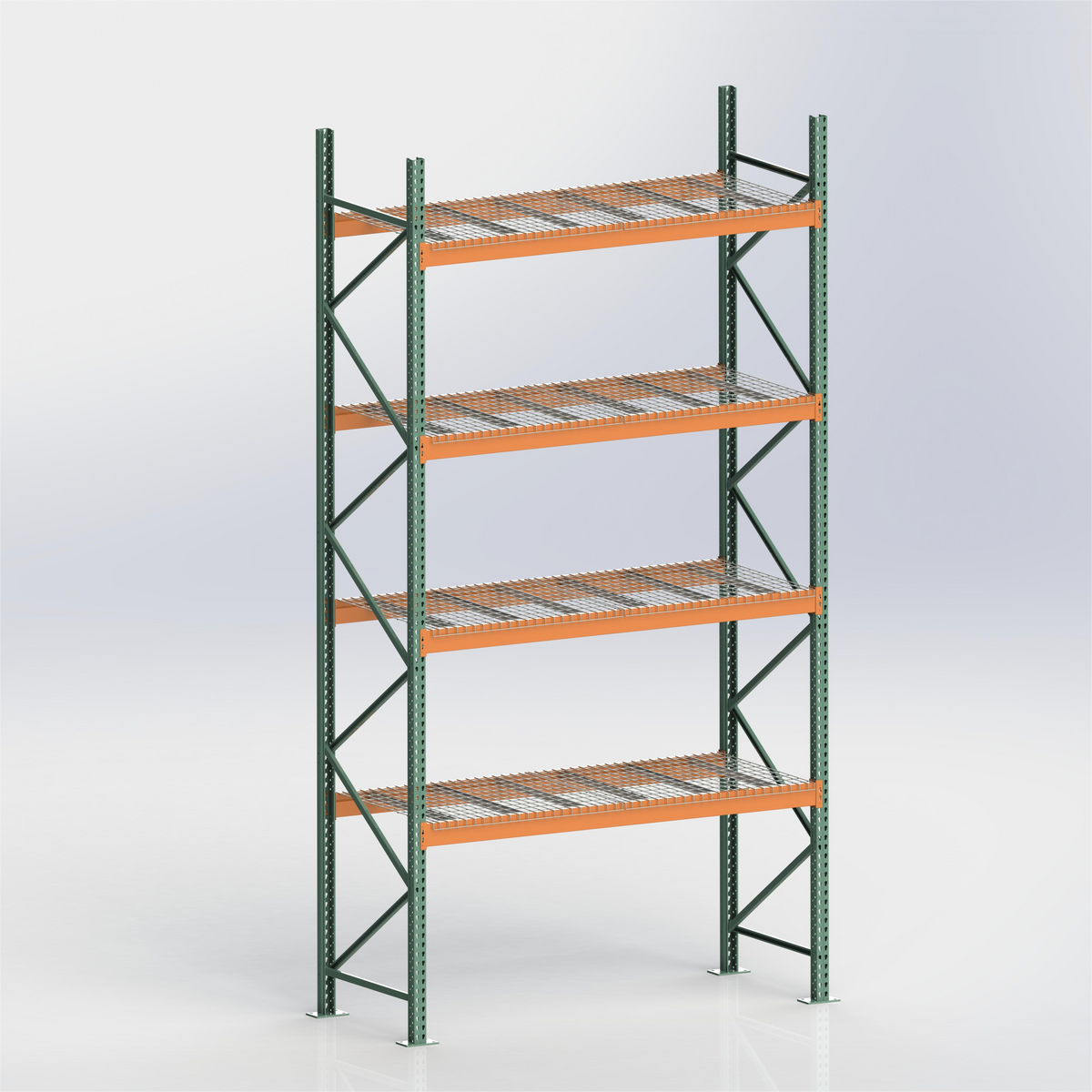

    Our popular Tear Drop Design is interchangeable with the following pallet rack manufacturers:

    Interlake (Original Style), Space Rack, USP, Speed Rack, Lodi Metal-Tech, Steel King and Ridg-U-Rak.

    • Features:Teardrop design
    • Post Dimension:3'' x 3'' or 3'' x 4''
    • Upright Material Tickness:14 Guage
    • Capacity:17600lbs
    • Color: Green
    • Foot Plate Dimension:8'' x 8'' x 3/8''  or Below size:
    1. 5'' x 8'' x 3/8''
    2. 10'' x 10'' x 3/8''
    3. 12'' x 12'' x 3/8''
    4. 4'' x 5'' x 3/8''
    We can also supply you the size specifications at your requested.

    Please email us "support@xyworldindustrial.com"for a super good price

    Specification
    ItemDescriptionUpright
    Gauge    		ColorMaterialHorizontal Bracing
    Q'TY    		Horizontal Bracing
    Gauge    		Dimension
    H x D
    		Post Dimension
    W x D
    		Theoretical Unit Weight
    mminmminLBSKGS
    1-UR96H36D-14G Bolted Pallet Rack Upright Frame 96" H x 36" D14 GA GreenSteel516 GA2438 x 91496  x 3676 x 763 x 366.51 30.17
    1-UR120H36D-14G  Bolted Pallet Rack Upright Frame 120" H x 36" D14 GA GreenSteel616 GA3048 x 914120 x 3676 x 763 x 378.48 35.6
    1-UR144H36D-14G Bolted Pallet Rack Upright Frame 144" H x 36" D14 GA GreenSteel716 GA3658 x 914144  x 3676 x 763 x 391.69 41.59
    1-UR192H36D-14G Bolted Pallet Rack Upright Frame 192" H x 36" D14 GA GreenSteel916 GA4877 x 914192  x 3676 x 763 x 3116.84 53
    1-UR216H36D-14G Bolted Pallet Rack Upright Frame 216" H x 36" D14 GA GreenSteel1116 GA5486 x 914216 x 3676 x 763 x 3130.71 59.29
    1-UR240H36D-14G Bolted Pallet Rack Upright Frame 240" H x 36" D14 GA GreenSteel1216 GA6096 x 914240  x 3676 x 763 x 3143.92 65.28
    1-UR288H36D-14G Bolted Pallet Rack Upright Frame 288" H x 36" D14 GA GreenSteel1416 GA7315 x 914288  x 3676 x 763 x 3169.07 76.69
    1-UR312H36D-14G Bolted Pallet Rack Upright Frame 312" H x 36" D14 GA GreenSteel1516 GA7925 x 914312 x 3676 x 763 x 3182.28 82.68
    1-UR336H36D-14G Bolted Pallet Rack Upright Frame 336" H x 36" D14 GA GreenSteel1616 GA8534 x 914336  x 3676 x 763 x 3194.25 88.11
    1-UR96H42D-14G  Bolted Pallet Rack Upright Frame 96" H x 42" D14 GA GreenSteel516 GA2438 x 106796  x 4276 x 763 x 368.01 30.85
    1-UR120H42D-14G  Bolted Pallet Rack Upright Frame 120" H x 42" D14 GA GreenSteel616 GA3048 x 1067120 x 4276 x 763 x 380.31 36.43
    1-UR144H42D-14G Bolted Pallet Rack Upright Frame 144" H x 42" D14 GA GreenSteel716 GA3658 x 1067144  x 4276 x 763 x 393.74 42.52
    1-UR192H42D-14G Bolted Pallet Rack Upright Frame 192" H x 42" D14 GA GreenSteel916 GA4877 x 1067192  x 4276 x 763 x 3119.47 54.19
    1-UR216H42D-14G Bolted Pallet Rack Upright Frame 216" H x 42" D14 GA GreenSteel1116 GA5486 x 1067216 x 4276 x 763 x 3134.04 60.8
    1-UR240H42D-14G Bolted Pallet Rack Upright Frame 240" H x 42" D14 GA GreenSteel1216 GA6096 x 1067240  x 4276 x 763 x 3147.44 66.88
    1-UR288H42D-14G Bolted Pallet Rack Upright Frame 288" H x 42" D14 GA GreenSteel1416 GA7315 x 1067288  x 4276 x 763 x 3173.19 78.56
    1-UR312H42D-14G Bolted Pallet Rack Upright Frame 312" H x 42" D14 GA GreenSteel1516 GA7925 x 1067312 x 4276 x 763 x 3186.60 84.64
    1-UR336H42D-14G Bolted Pallet Rack Upright Frame 336" H x 42" D14 GA GreenSteel1616 GA8534 x 1067336  x 4276 x 763 x 3198.92 90.23
    1-UR96H48D-14G Bolted Pallet Rack Upright Frame 96" H x 48"D14 GA GreenSteel516 GA2438 x 121996  x 4876 x 763 x 369.53 31.54
    1-UR120H48D-14G  Bolted Pallet Rack Upright Frame 120" H x 48" D14 GA GreenSteel616 GA3048 x 1219120 x 4876 x 763 x 382.19 37.28
    1-UR144H48D-14G Bolted Pallet Rack Upright Frame 144" H x 48"D14 GA GreenSteel716 GA3658 x 1219144  x 4876 x 763 x 395.86 43.48
    1-UR192H48D-14G Bolted Pallet Rack Upright Frame 192" H x 48" D14 GA GreenSteel916 GA4877 x 1219192  x 4876 x 763 x 3122.18 55.42
    1-UR216H48D-14G Bolted Pallet Rack Upright Frame 216" H x 48" D14 GA GreenSteel1116 GA5486 x 1219216 x 4876 x 763 x 3137.44 62.34
    1-UR240H48D-14G Bolted Pallet Rack Upright Frame 240" H x 48" D14 GA GreenSteel1216 GA6096 x 1219240  x 4876 x 763 x 3151.08 68.53
    1-UR288H48D-14G Bolted Pallet Rack Upright Frame 288" H x 48" D14 GA GreenSteel1416 GA7315 x 1219288  x 4876 x 763 x 3177.43 80.48
    1-UR312H48D-14G Bolted Pallet Rack Upright Frame 312" H x 48" D14 GA GreenSteel1516 GA7925 x 1219312 x 4876 x 763 x 3191.07 86.67
    1-UR336H48D-14G Bolted Pallet Rack Upright Frame 336" H x 48" D14 GA GreenSteel1616 GA8534 x 1219336  x 4876 x 763 x 3203.75 92.42
