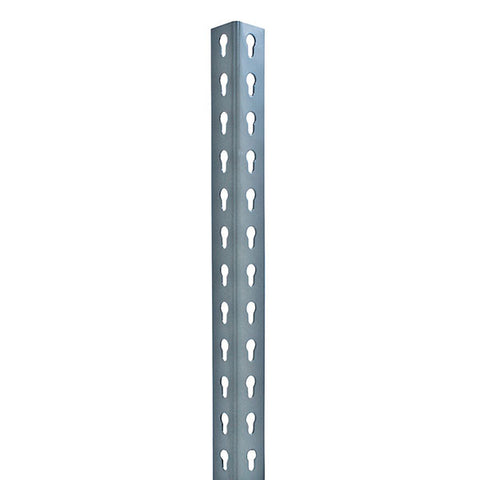

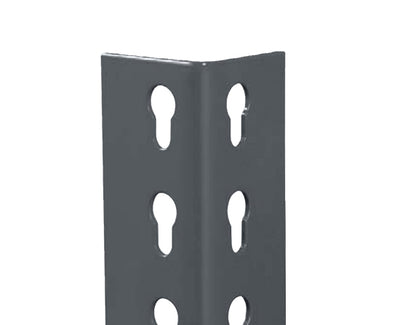

Angle Post Heavy Duty 14 Gauge
Angle Post Heavy Duty 14 Gauge

Angle Post Heavy Duty 14 Gauge

SKU: 1-APH36L-14G
Availability: In Stock
Product Type: Industrial Shelving

When maximum capacity and stability are essential,use the heavy duty angle post.

Material:235 Hot Rolled Steel

Color:Gray or any other color.


        $4.69
        $4.69
        Length: 36''
        Apply to be a reseller
        APPLY NOW
        Angle Post Heavy Duty 14 Gauge

        Angle Post Heavy Duty 14 Gauge

        $4.69
        Angle Post Heavy Duty 14 Gauge
        Angle Post Heavy Duty 14 Gauge

        Angle Post Heavy Duty 14 Gauge

        $24.92
        Length: 36''
          Overview
          Specification
          Overview
          • Dimention:1-7/8'' x 1-7/8''
          • Thickness:14 Gauge
          • Loading Capacity：

            Post Capacity (Per Post)

          Max Beam Spacing
          (in)          		Angle Post
          (LB)          		Heavy Angle Post
          (LB)
          12''18802820
          18''17402620
          24''15802400
          30''14202180
          36''12801980
          42''11601760
          48''10001550
          • Maximum beam spacing is determined as the distance between

          left-to-right beams or front-to-back beams,whichever greather.

          • We can also supply you the size specifications at your request!


          Specification
          Item #Item DescriptionMaterialColorLengthTheoretical WeightQty Per 40HC
          (PCS)
          mminKGSLBS
          1-APH36L-14GAngle Post Heavy Duty 36 '' LengthSteelGray914 361.042.2918,163
          1-APH48L-14GAngle Post Heavy Duty 48 '' LengthSteelGray1,219 481.393.0613,610
          1-APH60L-14GAngle Post Heavy Duty 60 '' LengthSteelGray1,524 601.733.8110,882
          1-APH72L-14GAngle Post Heavy Duty 72 '' LengthSteelGray1,829 722.084.599,065
          1-APH84L-14GAngle Post Heavy Duty 84 '' LengthSteelGray2,134 842.425.347,780
          1-APH96L-14GAngle Post Heavy Duty 96 '' LengthSteelGray2,438 962.766.086,805
          1-APH108L-14GAngle Post Heavy Duty 108 '' LengthSteelGray2,743 1083.126.886,047
          1-APH120L-14GAngle Post Heavy Duty 120 '' LengthSteelGray3,048 1203.57.725,441
          1-APH132L-14GAngle Post Heavy Duty 132 '' LengthSteelGray3,353 1323.818.44,950
          1-APH144L-14GAngle Post Heavy Duty 144 '' LengthSteelGray3,658 1444.159.154,537
          1-APH156L-14GAngle Post Heavy Duty 156 '' LengthSteelGray3,962 1564.59.924,187
          1-APH168L-14GAngle Post Heavy Duty 168 '' LengthSteelGray4,267 1684.8410.673,887
          1-APH180L-14GAngle Post Heavy Duty 180 '' LengthSteelGray4,572 1805.1811.423,630
          1-APH192L-14GAngle Post Heavy Duty 192 '' LengthSteelGray4,877 1925.5312.193,402
