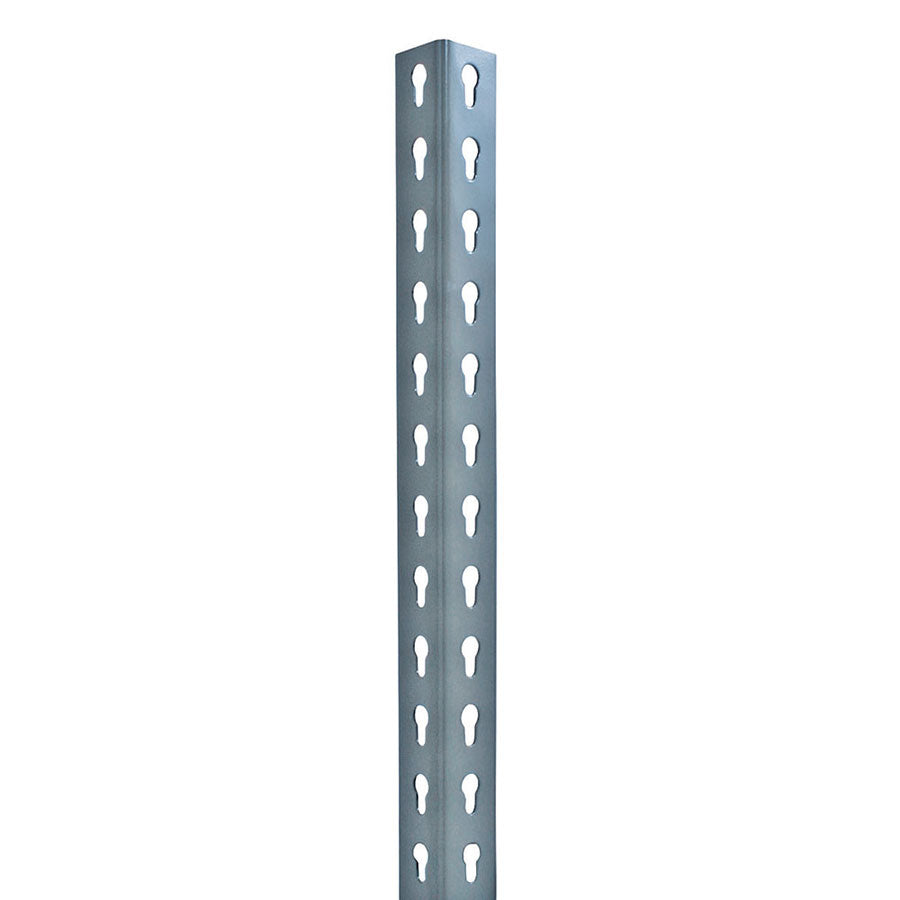

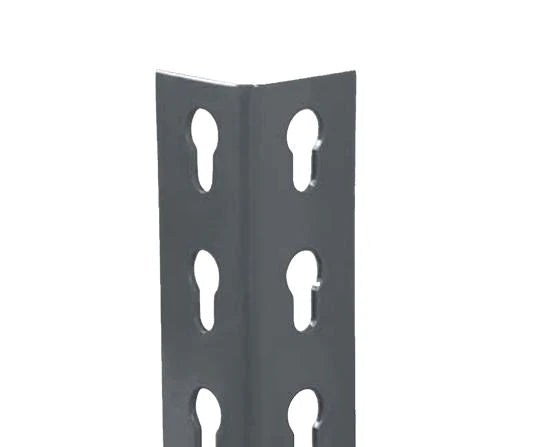

Angle Post 14 Gauge
Angle Post 14 Gauge

Angle Post 14 Gauge

SKU: 1-AP36L-14G
Availability: In Stock
Product Type: Industrial Shelving

Material:235 Hot Rolled Steel

Color:Gray or any other color.



        $3.56
        $3.56
        Length: 36''
        Apply to be a reseller
        APPLY NOW
        Angle Post 14 Gauge

        Angle Post 14 Gauge

        $3.56
        Angle Post 14 Gauge
        Angle Post 14 Gauge

        Angle Post 14 Gauge

        $14.11
        Length: 36''
          Overview
          Specification
          Overview


          • Dimension:1-1/2'' x 1-1/2''
          • Thickness:14 Gauge
          • Loading Capacity：

            Post Capacity (Per Post)

          Max Beam Spacing
          (in)          		Angle Post
          (LB)          		Heavy Angle Post
          (LB)
          12''18802820
          18''17402620
          24''15802400
          30''14202180
          36''12801980
          42''11601760
          48''10001550
          • Maximum beam spacing is determined as the distance between

          left-to-right beams or front-to-back beams,whichever greather.

          • We can also supply you the size specifications at your request!


          Specification
          Item #Item DescriptionMaterialColorLengthTheoretical WeightQty Per 40HC
          (PCS)
          mminKGSLBS
          1-AP36L-14GAngle Post 36 '' LengthSteelGray914 360.791.7424,060
          1-AP48L-14GAngle Post 48 '' LengthSteelGray1,219 481.052.3118,005
          1-AP60L-14GAngle Post 60 '' LengthSteelGray1,524 601.312.8914,423
          1-AP72L-14GAngle Post 72 '' LengthSteelGray1,829 721.573.4612,003
          1-AP84L-14GAngle Post 84 '' LengthSteelGray2,134 841.884.1410,298
          1-AP96L-14GAngle Post 96 '' LengthSteelGray2,438 962.154.749,002
          1-AP108L-14GAngle Post 108 '' LengthSteelGray2,743 1082.425.348,008
          1-AP120L-14GAngle Post 120 '' LengthSteelGray3,048 1202.615.757,212
          1-AP132L-14GAngle Post 132 '' LengthSteelGray3,353 1322.876.336,551
          1-AP144L-14GAngle Post 144 '' LengthSteelGray3,658 1443.136.96,002
